E-PAPER SIGNAGE S253
E-paper technology is increasingly embraced on digitization process for its paper-like and energy-efficient features.
S253 digital signage is updated wirelessly via WiFi and content is downloaded from cloud server. In that way, people don’t have to change anything on site and lot of labor cost can be saved.
Power consumption won’t never be an issue because batteries lasts up to 2 years even if there will be 3 times of updates every single day.
The new color E-paper drive waveform architecture increases contrast significantly, which brings possibilities of being widely used in diversified scenarios.
E-paper display consumes ZERO power when it remains in an image. And only 3.24W power is needed for each update. It works by rechargeable lithium battery and requires no cabling.
S253 has mounting bracket in line with VESA standard for easy attaching. The viewing angle is more than 178°, and content is visible from large area.
Multiple signs can be spliced together to meet with bigger size requirement to display different images or an entire picture on the big screen.
|
Project name |
Parameters |
|
|
Screen Specification |
Dimensions | 585*341*15mm |
| Frame | Aluminum | |
| Net Weight | 2.9 kg | |
| Panel | E-paper Display | |
| Color Type | Full color | |
| Panel Size | 25.3 inch | |
| Resolution | 3200(H)*1800(V) | |
| Aspect ratio | 16:9 | |
| DPI | 145 | |
| Processor | Cortex Quad Core | |
| RAM | 1GB | |
| OS | Android | |
| ROM | 8GB | |
| WIFI | 2 4G (IEEE802 11b/g/n) | |
| Bluetooth | 4.0 | |
| Image | JPG, BMP, PNG, PGM | |
| Power | Rechargeable battery | |
| Battery | 12V, 60Wh | |
| Storage Temp | -25-50℃ | |
| Operating Temp | 15-35℃ | |
| Packing List | 1 data cable, 1 user manual | |
In the system of this product, the terminal device is connected to the MQTT server through the gateway. The cloud server communicates with the MQTT server through the TCP/IP protocol to realize real-time data transmission and command control. The platform communicates with the cloud server through the HTTP protocol to realize remote management and control of the device.The user directly controls the terminal through the mobile APP. The APP communicates with the cloud server through the HTTP protocol to query the status of the device and issue control instructions. At the same time, the APP can also directly communicate with the terminal through the MQTT protocol to realize data transmission and device control. This system is connected through the network to realize information interaction and control among equipment, cloud and users. It has the advantages of reliability, real-time and high scalability.

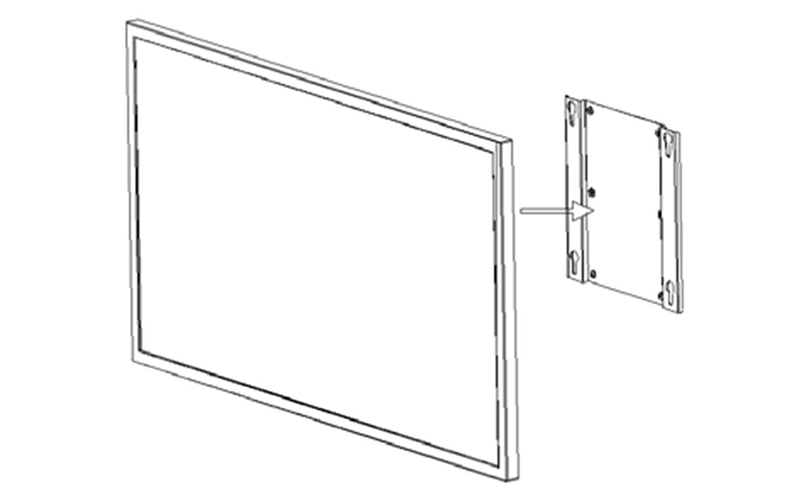

Mount the bracket on the wall with screws.
Install the screws on the host.
Hang the host on the bracket.
E-paper panel is a fragile part of the product, please pay attention to protection during carrying and use. And please be noted that physical damage by wrong operation to the sign is not covered by warranty.
